Museo Revo Medium

Description

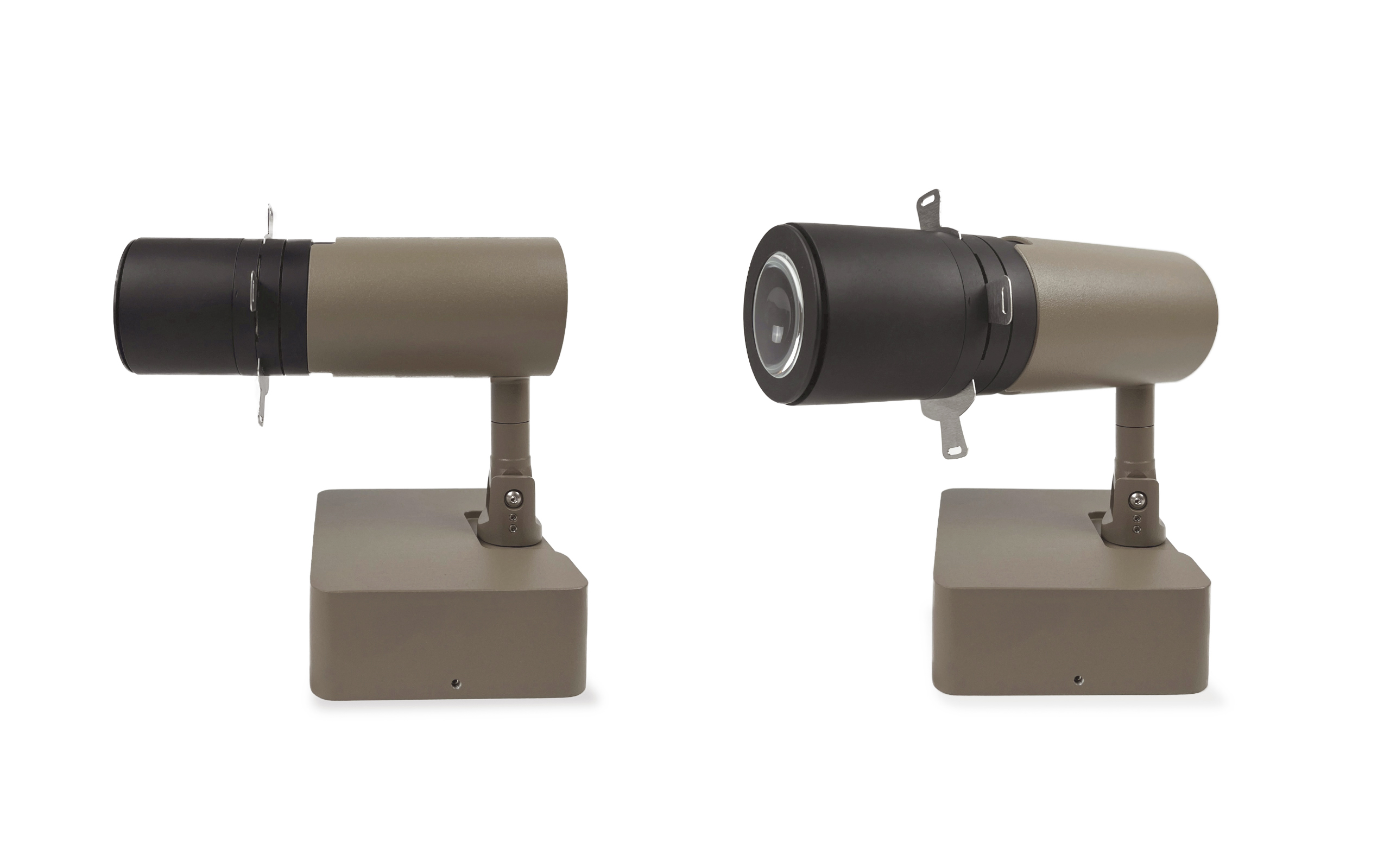

Projectors for surface mounting with drivers integrated in the base.
Suitable for high visual comfort lighting, direct and indirect. Dedicated to advanced lighting design, the new Revo-Dark optical systems are particularly suitable for settings with high visual comfort. Characterised by a double joint and six degrees of freedom, they allow precise positioning in every direction. The minimised dimensions and dedicated finishes for maximum camouflage in the context combine with the new REVO performance parameters to achieve a size-performance ratio that is beyond comparison.

The Medium version offers apertures from 8° to 50° two elliptical beams, the sought-after Deep and Grazing wall-washer with high homogeneity and a shaper.
The numerous accessories are designed with an overlapping mounting system, allowing a differentiated and specific optical configuration. High colour rendering, UGR<10 and compliance with DARK lighting parameters are complemented by the quality of the 2 SDCMs of the source and the particular cleanliness of the beam projection. The overall aluminium body features new frictionless brass arms with micrometric locking for easy and definitive aiming.
The full compatibility with the most common control systems makes Museo Revo Medium the perfect tool in contexts where the value of the source is determined by a very high quality performance and minimum physical and visual intrusion.

This model can also be configured in the shaper version with mobile lenses, to obtain focused quadrangular projections with a light and small instrument.

Downloads

  •
  •
  •
  •
  •

Features and Advantages

Ø 61mm


CRI: 92/98


CCT: 2700K/3000K/3500K/4000K


UGR<10


ON-OFF/1-10V/DALI/CASAMBI/LUMENTALK


6 Optics


2 Elliptical


2 Wall Washer


Shaper


7 Finishes

Specifications

CCT

2700K2700K
3000K3000K
3500K3500K
4000K4000K

Certification

CE ComplianceCE Compliance

Isolation class

Class I - Earth contactClass I - Earth contact

Class F

YESYES

CRI

9292
9898

Incandescent wire

650°650°

Warranty

5 years5 years

Protection class

IP40IP40

Longitudinal and Elliptical Lighting

Elliptical Narrow SpotElliptical Narrow Spot
Elliptical Wide FloodElliptical Wide Flood

Accent Lighting

Very Narrow Spot 6°Very Narrow Spot 6°
Narrow Spot 11°Narrow Spot 11°
Spot 16°Spot 16°
Narrow Flood 24°Narrow Flood 24°
Flood 36°Flood 36°
Wide Flood 50°Wide Flood 50°

Wall Washer Lighting

Deep WasherDeep Washer
Grazing WasherGrazing Washer

Shaper/Zoom

ShaperShaper

Control System

1-10V1-10V
CASAMBICASAMBI
DALIDALI
LUMENTALKLUMENTALK

Operating temperature

-10° / +35°-10° / +35°

Colour Deviation

2 SDCM2 SDCM

Configurator

Product Configurator

Product Code :

Technical files of the selection
